Tri-Clamp (TC) Gaskets – Precision Sealing Solutions , Food & Pharma Grade
Choose the size and formulation to suit your flow rate and application needs.

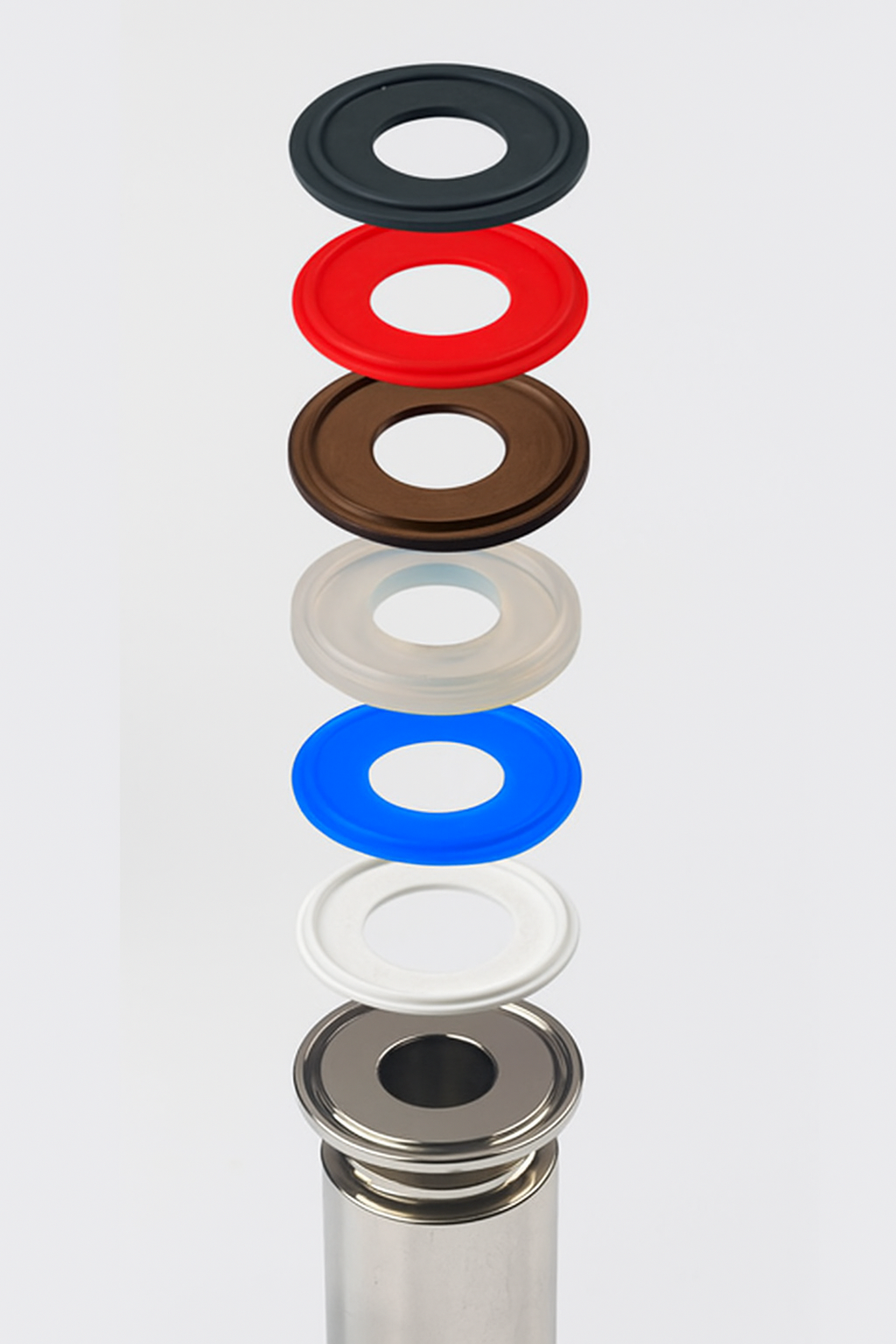

Tri-Clover Gasket (TC Gasket)
Jayanti Polymer offers its tri-clamp gaskets in Silicone Rubber (VMQ/MVQ) and also in Viton Rubber (FKM).
Silicone TC Gasket is available in white, blue, red, black, and transparent. It is offered both with and without collar, conforming to USO standards (FDA 21 CFR 177.2600).
Key Features
- Material: Silicone (VMQ/MVQ), Viton (FKM)
- Color Options: White, Blue, Red, Black, Transparent
- Available with and without Collar
- Compliant with FDA 21 CFR 177.2600
Standard Sizes (mm)
| NORMAL SIZE | D3 | D4 | D5 |
|---|---|---|---|
| ½” | 34.0 | 27.5 | 10.9 |
| ½” A (Mini) | 22.0 | 17.0 | 9.5 |
| ¾” | 34.0 | 27.5 | 15.4 |
| 1” | 50.5 | 43.5 | 22.8 |
| 1 ½” | 50.5 | 43.5 | 35.8 |
| 2” | 64.0 | 56.5 | 48.8 |
| 2 ½” | 77.5 | 70.5 | 60.5 |
| 3” | 91.0 | 83.5 | 73.1 |
| 4” | 118.0 | 110.0 | 96.0 |
